USB Bluetooth Beacon U1 BLE iBeacon Eddystone Proximity Tracker USB Powered
$16.00
Bluetooth Low Energy 4.0/5.0
- Plug and Play, just plug it in any USB power and it works. No battery required! You can increase broadcast interval and power when using USB charger! (charger not included)
- Ultra-low power consumption chipset Nordic nRF52 series, perfect for laptops.
- Can broadcast iBeacon and Eddystone at the same time. Supports up to 5 simultaneous configurations on the same device! Supports EDDYSTONE UID, TLM, URL, iBeacon or plain MAC + model. Supports password protection.
- 100% configurable parameters via KBeaconPro App (Both Android & iOS)

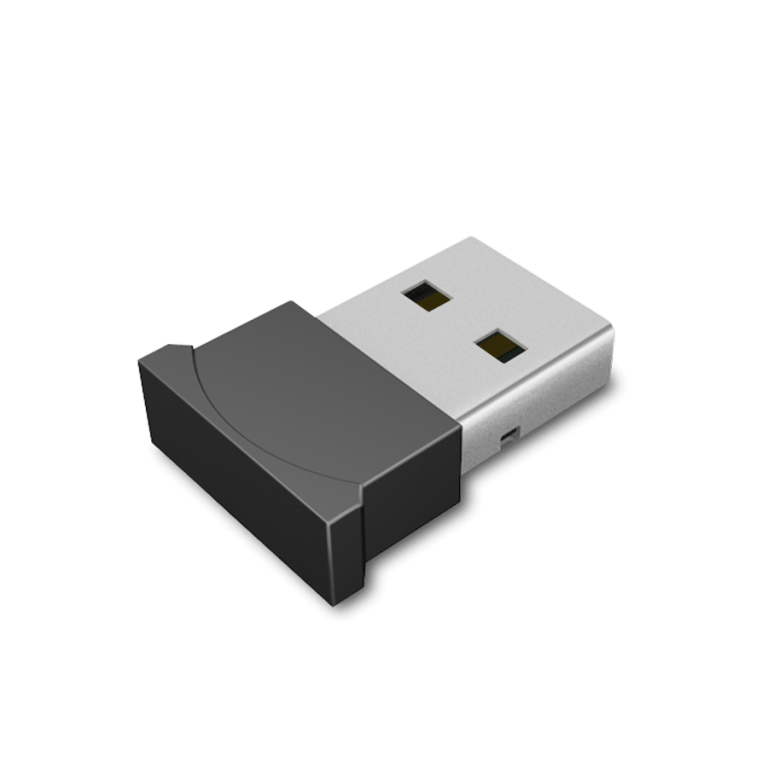

U1 Beacon is USB plug design Beacon with ultra-low power chipset Nordic nRF52 series and BLE 5.0 technology.
U1 beacon in mini size and can be easily carry and plug to use. It is USB powered. You don’t have to worry about the battery maintenance. It has good signal, it is designed for personnel management, commercial advertising and indoor location-based service.
U1 Beacon broadcasts 2.4GHz radio signals at regular and adjustable intervals. U1 Beacon can be heard and interpreted by iOS and Android BLE- enabled devices that are equipped with many mobile apps.
Specifications:
| Material for shell: | ABS |
| Color: | Black, white |
| Size: | 22mm*16mm*6mm |
| Weight: | 2g (without battery) |
| Accessory: | NA |
| Battery: | USB powered 5V |
| Battery life: | Without battery |
| Waterproof level: | NA |
| Support Protocol: | Apple iBeacon Eddystone URL Eddystone UID Eddystone TLM |
| OTA: | Yes |
| Button: | NA |
| LED: | 1 LED |
| Sensor: | NA |
| Rechargeable: | No |
| Programmable parameters: | Tx Power/Advertisement period/Lock password； iBeacon UUID/Major/Minor； Compatible with Eddystone , URL，UID(NamespaceID, Serial ID) |
| Buzzer: | N/A |
| Others: | Support Non connection Advertisement Mode Support Configuration Advertisement Mode Support Factory reset |
| Chipset: | nRF52 series |
| Tx Power: | -40~4dBm |
| BLE: | BLE5.0 |
| Wireless Frequency Band: | 2.4GHz |
| Transmitting range: | BLE5.0: 100 meters in the open space. The range depends on physical environment. |
| Powered by: | USB port 5V |
| Configuration: | via KBeaconPro Phone App |
| iBeacon: | UUID: 0x7777772E-6B6B-6D63-6E2E-636F6D000001 Major ID:0x0001 Minor ID: 0x0001 |
| Tx Power | 0dBm |
| Broadcast interval: | 1000ms |
| Eddystone UID: | Namespace ID: 6B6B6D636E2E636FD01 Instance ID ID:0x000000000001 |
| Eddystone TLM: | Battery voltage; Temperature; Advertisements count/Time since power-up |
| Default Lock Code: | 16Byte Lock Code: 0x3030303030303030303030303030303030303030 |
| Working temperature: | -40℃~+70℃ |
| Storage temperature: | 10℃~+25℃，≤65%RH |
Ships from USA. Contact us if you have any questions or you need to order more than 100.
